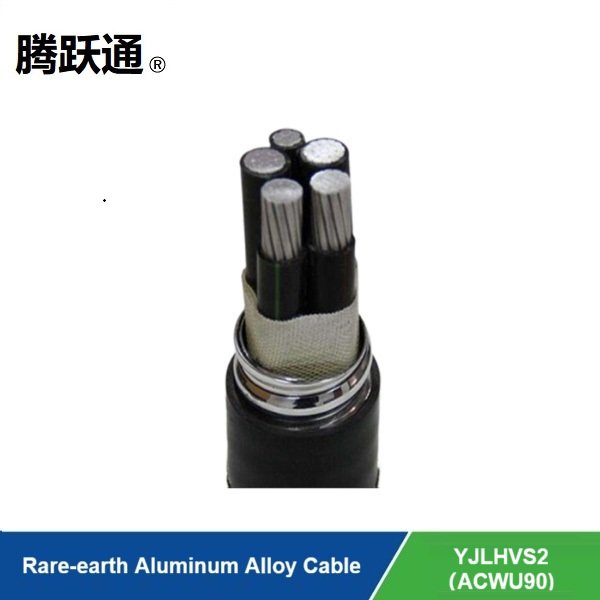

Rare Earth Aluminum Alloy Interlocked Armoured Cable YJLHVS2 / ACWU90
Adopts rare earth ferrosilicon aluminum alloy conductor, (flame retardant) silane cross-linked polyethylene insulation, and polyvinyl chloride (PVC) sheath or polyolefin sheath.
The armouring method of this cable is completely different from traditional steel tape armour. It adopts an aluminium alloy strip interlocking structure. The armour layer features excellent pressure resistance, impact resistance, easy bending, corrosion resistance, light weight and convenient installation. It allows installation without conduits or cable trays, provides protection against termites and rodents, and achieves high flame retardant performance.
Product Characteristic Analysis
Aluminum alloy power cables have been widely used in developed countries such as the US and Canada.
Conductor: Creep resistance, high flexibility, strong ductility, low rebound, stable connection.
Insulation: Flame retardancy, aging resistance, high durability, low-carbon and eco-friendly.
Armour Layer: Excellent economic performance, special self-locking structure, firm and tough.
Outer Sheath: Lead-free and cadmium-free PVC is adopted. The cable can be installed in damp locations, directly buried or laid in concrete.
Operating Requirements
Suitable for voltage ratings from 600 V to 35 kV. Suitable for dry or damp locations at temperatures up to 90 ℃. Can be installed indoors or outdoors, vertically, on brackets, along walls, or directly buried underground. The minimum bending radius is 7 times the outer diameter of the cable, and 360° bending is also permitted. Applicable to civil, commercial, industrial, large venues, entertainment places, mines, subways, and various hazardous areas.
| Model Name | Name | Main Applications |
| YJLHVS2 | Cross-linked Polyethylene Insulated, PVC Sheathed, Aluminum Alloy Strip Interlocked Armoured Aluminum Alloy Power Cable | Highly flexible interlocked armoured cable with sealed outer sheath, eliminating the need for conduits and accessories as well as labor-intensive procedures such as cable pulling, threading and piping installation. It can be installed exposed or concealed in dry or damp environments, and is also suitable for hazardous areas. Indoor installation methods include surface mounting on supports, ladders, trays and cable clamps. Outdoor installation can be implemented by direct burial, cable trenches, cable tunnels and other means. |
| Note: The prefix “ZR” is added to the original model for all flame-retardant power cables manufactured by our company; the prefix “NH” is added for all fire-resistant power cables; the prefix “WDZN” is added for all low-smoke zero-halogen flame-retardant fire-resistant cables. ST8 is used as the low-smoke zero-halogen material for inner lining and sheath.
eg: WDZN YJHLYS3 (Low-smoke Zero-halogen Flame-retardant Fire-resistant Metal Interlocked Armoured Aluminum Alloy Power Cable |
||
| Model Name | No. Of Cores | Rated Voltage / Nominal Cross section | ||||
| 0.6/1 kV | 8.7/10 kV 8.7/15 kV |
26/35 kV | ||||
| YJLHVS2 | 2 | 6-630 | ||||
| 3 | 6-630 | 25-630 | 50-630 | |||
| 3+1 | 10-630 | |||||
| 3+2 | 10-630 | |||||
| 4 | 6-630 | |||||
| 4+1 | 10-630 | |||||
| 5 | 6-630 | |||||
